Clay roof tiles

Interlocking tiles | Photo by Ron Martin
Interlocking tiles
Photo by Ron Martin
Plain clay roof tiles | Photo by Ron Martin
Plain clay roof tiles
Photo by Ron Martin
Ladies bonnet | Photo by Ron Martin
Ladies bonnet
Photo by Ron Martin
Half round ridge | Photo by Ron Martin
Half round ridge
Photo by Ron Martin

1. Clay roof tiles are traditional
The traditional form of building material in Sussex is the clay roof tile. This is properly called a plane tile and consists of a fired clay slab, six and a half inches wide and ten and a half inches high.

2. A roof has to be laid to a 45 degree pitch
These tiles are laid on roofs and because they are hand made they are not particularly flat and therefore a roof laid in hand-made tiles has to be laid to at least 45 degree pitch so that one can see where a roof has been laid previously with clay plane tiles and been recovered with something else.

3. Two or three layers of tile are needed
A clay plain tile is a heavy tile by the nature of the material. One has to have at least 2 layers of tile and sometimes 3 layers, so it is a fairly heavy material.

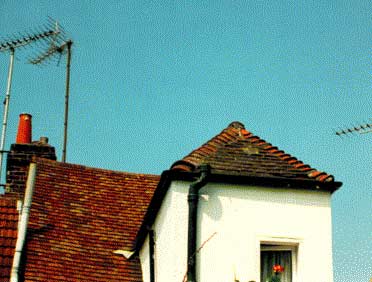

4. Covering ridges and hips
The traditional way of covering ridges, which is the top surface of the roof, is by using a half-round or an angular ridge tile. The hip which is the sloping surface between two roof surfaces can either be covered with a half-round tile or, by using the bonnet hip tile, which looks very much like an old-fashioned lady’s bonnet.

5. Roof materials have a limited life
Roof materials do have a limited life so that you do find that over the years the materials get changed. One still uses plane tiles nowadays but since the first World War one has been making these of concrete and of course nowadays this is the norm.
